Casing Moulding 2-3/4" - 22

Casing Moulding 2-3/4" - 22

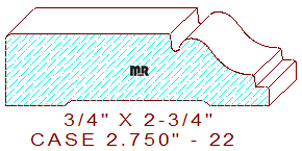

This Attractive Casing Moulding 2-3/4" - 22 measures 2.750" wide by .750" thickness with a .713" depth of cut on the top horizontal set of knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few available options to choose from.

The fashionable detail is comprised of a 1-23/32" wide by 3/16" deep stepped fillet, that transitions into a deep sloping cyma reversa, attached to a 9/64" wide by 1/8" tall notched fillet located on the thin side of the pattern.

Try utilizing one of our many decorative backband details, create a unique, one of a kind compelling casing moulding for your beautiful home or office.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
