Casing Moulding 2-3/4" - 33

Casing Moulding 2-3/4" - 33

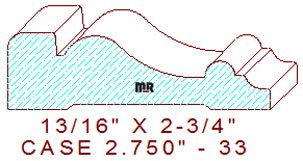

This Colonial Casing Moulding 2-3/4" - 33 measures 2.750" wide by .812" thickness with a .757" depth of cut on the top horizontal set of knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few different options to choose from.

The gorgeous detail is comprised of a 1/2" wide by 1/4" deep stepped fillet with a 3/16" radius edge, connected to a 5/64" wide sunk fillet that transitions into a deep sloping cyma reversa, attached to a 5/16" wide half round circle, with a tiny horizontal line and 3/16" radius cavetto positioned on the thin side of the pattern.

Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection, on any brand of industrial moulder machinery.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
