Door/Window Casing 2-7/8" - 2
Door/Window Casing 2-7/8" - 2

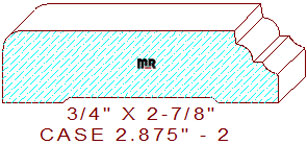

This remarkable 2-7/8" - 2 door/window casing measures 2.875" width by .750" thickness, enabling a 3-1/8" wide blank of four-quarter lumber for machining on an industrial moulder. The custom profile contains a 3/16" rolled outer edge on the top left. The round over joins to a 2-7/16" broad flat line segment with a 9/64" vertical step in the center. Connected to an 11/64" quarter round convex arc and a 3/32" wide fillet merged to a 7/32" cove with a 3/64" eased edge on the designs right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.875
Depth of Cut: 0.625
Bottom Cutter Head
Width: 2.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$231.50
$231.50
Total:
$463.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$246.00
$246.00
Total:
$492.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.75
$267.75
Total:
$535.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
