Door/Window Casing 2-15/16" - 1

Door/Window Casing 2-15/16" - 1

Door/Window Casing 2-15/16" - 1

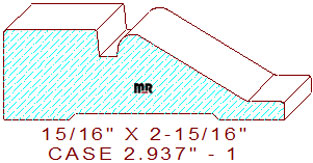

This canted 2-15/16" - 1door/window casing measures 2.937" wide by .938" thickness requiring five-quarter lumber to mill this pattern on an industrial moulder. The profile is comprised of a 1" wide by 9/32" deep stepped line with a 3/64" eased edge, attached to a 3/16" wide by 1/4" deep sunk fillet that transitions into a sloped 5/32" radius arc joined with another 3/64" eased edge fillet on the thin side of the design.

Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate be used for these milling operations.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.937
Depth of Cut: 0.937
Bottom Cutter Head
Width: 2.937
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$242.10
$227.35
Total:
$469.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$256.85
$242.10
Total:
$498.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.59
$256.85
Total:
$528.44
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
