Door/Window Casing 2-15/6" - 3

Door/Window Casing 2-15/6" - 3

Door/Window Casing 2-15/6" - 3

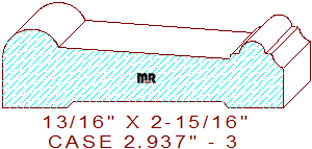

This elegant 2-15/16" - 3 door/window casing measures 2.937" wide by .813" thickness enabling the pattern to be milled from four-quarter lumber. The stylish custom profile is comprised of a 19/32" wide half-round circle on the outer edge, connected to an elevation changing 3.967-degree beveled line, joined to a small stepped line with a 17/64" wide half round bead with a 5/64" wide fillet and an 11/64" cove on the thin side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.937
Depth of Cut: 0.478
Bottom Cutter Head
Width: 2.937
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$227.35
$227.35
Total:
$454.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$242.10
$242.10
Total:
$484.20
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$256.85
$256.85
Total:
$513.69
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
