Door/Window Casing 2-15/16" - 4

Door/Window Casing 2-15/16" - 4

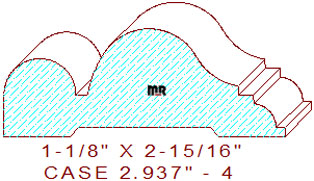

This unique 2-15/16" - 4 door/window casing measure 2.937" wide by 1-1/8" thickness requiring at least five-quarter lumber for milling. The designer profile is comprised of a 3/4" wide half-round circle with a 1/8" wide sunk fillet, attached to a bold two tangent radius cyma reversa in the center, joined to a notched and stepped line that transitions into a 1/4" radius ovolo on the thin side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.937
Depth of Cut: 1.032
Bottom Cutter Head
Width: 2.937
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$249.47
$234.72
Total:
$484.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.22
$249.47
Total:
$513.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$286.34
$271.59
Total:
$557.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
