Door/Window Casing 3"

Door/Window Casing 3"

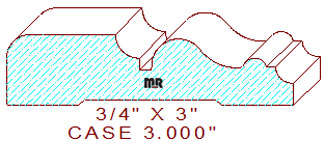

This traditional 3" door/window casing measures 3.000" wide by .750" thickness., permitting the detail to be machined out of four-quarter lumber. The old-world profile is comprised of a 1-9/64" broad straight line with a 1/4" eased edge on the top left, connected to a 1/4" radius cove and a 1/8" wide sunk fillet, joined to a two tangent radius cyma reversa with a 1/4" wide half circle that connects to a small line segment and an 11/32" cove on the right side of the design. We offer a wide range of colonial patterns in a variety of widths; here are just a few alternative profiles in this size you may want to review and consider, window casing 3.000" - 56 and door casing 3.000" - 75.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.681
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$238.00
Total:
$491.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$268.00
$253.00
Total:
$521.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.50
$275.50
Total:
$566.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
