Casing Moulding 3" - 1

Casing Moulding 3" - 1

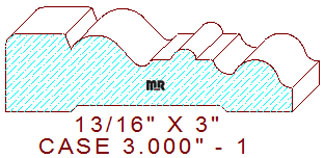

This unique casing moulding 3" - 1 measures 3.000" wide by .812" thickness, allowing the detail to be machined from four quarter lumber. The innovative profile is comprised of a 11/16" wide straight line with a 1/8" radius on the left outer edge and a chamfer on the inside edge, connected to a deep down-sloping cyma recta attached to a thumbnail shaped bead flanked by small horizontal line segments, joined to a 3/16" radius cove and a 1/4" and 5/32" tangent radiuses creating a cyma reversa on the thin side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .562" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
