Door/Window Casing 3" - 101
Door/Window Casing 3" - 101

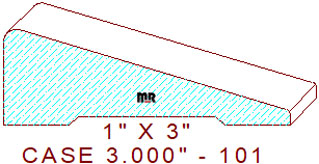

This beveled 3" - 101 door/window casing measures 3.000" wide by 1.000" thickness requiring five quarter lumber for milling. The commonly used canted profile is composed of a sixteen-and-one-half degree beveled line across the face with a 1/8" rounded outer edge and a 1/16" eased inner edge, leaving a 11/64" thickness dimension on the thin side of the design. We offer a couple of other versions of this design in the same width but with different degree angles for your review and consideration, door casing 3.000" - 25 and window casing 3.000" - 72.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 1.000
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$254.00
$239.00
Total:
$493.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$269.00
$254.00
Total:
$523.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.50
$276.50
Total:
$568.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
