Casing Moulding 3" - 13

Casing Moulding 3" - 13

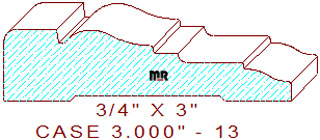

This distinctive colonial casing moulding 3" - 13 measures 3.000" wide by .750" thickness. The striking pattern is comprised of a 9/16" wide stepped fillet with a 1/8" eased edge, connected to a 1/16" wide sunk fillet that transitions into a 15/16" wide cyma reversa with a small 5/64" deep by 1/4" wide notch, joined to a 11/16" wide congee made from a 3/32" radius cove with another smaller ogee on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find the right one to suit your needs.

Thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost from not securing the table bearings before moving.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .690" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
