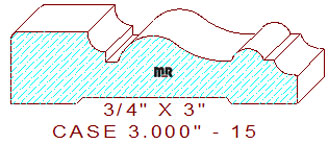

This Colonial Casing Moulding 3" - 15 measures 3.000" wide by .750" thickness, with a .624" depth of cut on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The time honored profile is comprised of a 13/16" wide straight fillet with a 3/32" radius eased edge, connected to a 3/16" radius cove with an attached 1/8" wide sunk fillet, joined to a cyma reversa with a 11/32" wide half round circle, small fillet, and a 13/64" radius cove positioned on the thin side of the pattern.
We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct width size of knife steel before you start knife grinding procedures and moulding production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
