Door/Window Casing 3" - 18

Door/Window Casing 3" - 18

Door/Window Casing 3" - 18

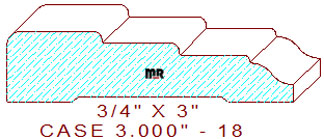

This stepped 3" - 18 door/window casing measures 3.000" wide by .750" thickness. The tiered profile is comprised of a 1" wide raised fillet with a 5/32" eased outer edge and a 3/32" inside edge, connected to a 13/16" wide horizontal line with a 3/32" eased edge, joined to a 47/64" straight line with a 1/16" rounded step that connected to a two tangent radius ogee made from 9/32" semicircles.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.563
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$230.50
$230.50
Total:
$461.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$245.50
$245.50
Total:
$491.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$260.50
$260.50
Total:
$521.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
