Casing Moulding 3" - 22

Casing Moulding 3" - 22

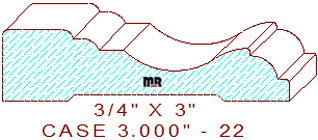

This exclusive casing moulding 3" - 22 measures 3.000" wide by .750" thickness, the pattern will require four quarter lumber for milling on a industrial molder. The custom profile is composed of a 47/64" wide raised fillet with a 1/16" outer and a 1/8" inner eased edges, connected to a 3/16" quarter round arc that joins to a 1/4" wide line segment, attached to a two tangent radius scotia that transitions into a 9/32" radius ovolo, leaving a 7/32" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over thirty-five years of experience in woodworking and former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with one of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .717" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
