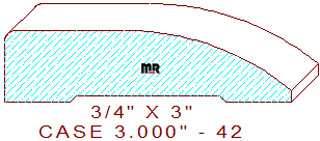

This Streamline Casing Moulding 3" - 42 measures 3.000" wide by .750" thickness, the profile is composed of a 1/8" radius edge fillet that measures 1-1/4" long before cascading downward to a thickness of 1/8" on the thin side of the pattern. There are two dxf files for this particular detail, one for the image you see above and one for a design that eliminates the radius on the side edge and opens to 4-1/2" wide, this will create some flexibility in the width while milling the pattern, you can cut whatever size radius you desire or leave it straight for an optional base moulding detail with the left vertical spindle on the moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
