Casing Moulding 3" - 44

Casing Moulding 3" - 44

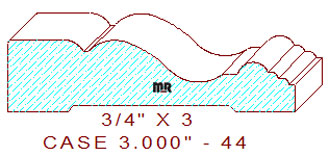

This beautiful casing moulding 3" - 44 measures 3.000" wide by .750" thickness. The colonial era pattern is comprised of a 25/32" wide line segment with a 3/64" eased edge tangent off of a 1/4" radius arc with an attached 3/64" wide sunk fillet that transitions into an elevation changing cyma reversa, connected to a horizontal line, half round circle, two cascading radius steps and a 1/16" wide line segment on the thin side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Try one of our 125% concentration ultimate borazon grinding wheels. Finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel moulding knives. During the machining process these cutters will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .469" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
