Casing Moulding 3" - 53

Casing Moulding 3" - 53

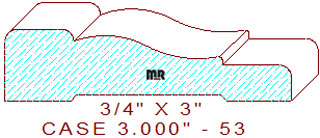

This traditional casing moulding 3" - 53 measures 3.000" wide by .750" thickness, enabling the pattern to be milled from four quarter lumber. The decorative design is similar in style to the popular WM 356 (2-1/4",) WM 351 (2-1/2") and casing 3.000" - 9. The detail is comprised of a 23/32" wide horizontal line with two 1/8" rounded edges, connected to a two tangent radius cyma reversa with a 3/64" eased vertical edge, attached to a 23/32" wide horizontal line segment with a 1/8" eased edge on the right side of the pattern.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
