Door/Window Casing 3" - 61

Door/Window Casing 3" - 61

Door/Window Casing 3" - 61

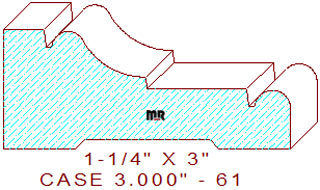

This lovely 3" - 61 door/window casing measures 3.000" width by 1.250" thickness, requiring the use of 3-1/4" wide blank of six-quarter lumber for milling on a commercial moulder. The beautiful profile composes a 7/16" wide horizontal line with a 3/16" deep vertical step on the left. It connects to a 1/16" wide sunk fillet that transitions into a downsloping two tangent radius cyma reversa with a 1/8" vertical drop in elevation. Joined to a 1-1/16" broad line segment with a 3/16" vertical step, merged with another 1/16" wide sunk fillet and a 3/8" wide half-circle on the right side of the pattern. We offer a couple of other size versions of this design for your review and consideration, door casing 1.937" - 2 and window casing 4.000" - 28.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.984
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$245.50
$230.50
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$260.50
$245.50
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$260.50
Total:
$536.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
