Door/Window Casing 3" - 76

Door/Window Casing 3" - 76

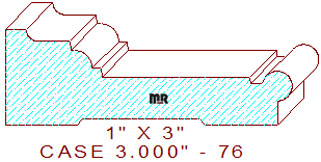

This attractive door/window casing moulding 3" - 76 measures 3.000" wide by 1.000" thickness. The lovely profile comprises a 7/32" horizontal line attached to a 15/32" wide congee that transitions into a 3/16" radius ovolo, connected to a 1-9/16" wide stepped line joined to a 1/8" wide sunk fillet with a 5/16" three quarter round pencil bead on the thin side edge of the pattern. We have a larger version of this pattern for your review and consideration, door/window casing 4.000 - 108.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.000
Depth of Cut: 0.158
Top Cutter Head
Width: 3.000
Depth of Cut: 0.562
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$91.00
(Template not needed)
$195.00
(Template not needed)
$195.00
(Template not needed)
Total:
$481.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$98.00
(Template not needed)
$210.00
(Template not needed)
$210.00
(Template not needed)
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$108.50
(Template not needed)
$232.50
(Template not needed)
$232.50
(Template not needed)
Total:
$573.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
