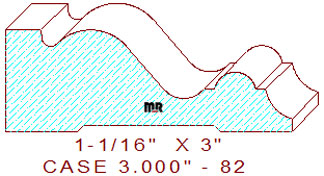

This beautifully robust casing moulding 3" - 82 measures 3.000" wide by 1.062" thickness, allowing the pattern to be milled from five quarter lumber. The elegant profile is composed of a 3/8" wide line segment on the left, (this area was intentionally left square for use of one of our many back band profiles,) joined to a small 3/32" radius scotia that transitions into a deep sloping two tangent radius french curve, connected to a 7/16" wide half round circle flanked by small line segments with a 25/64" cove leaving a 1/8" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .945" (top knives) & .062" (bottom cutters.)
