Door/Window Casing 3-1/16" - 1

Door/Window Casing 3-1/16" - 1

Door/Window Casing 3-1/16" - 1

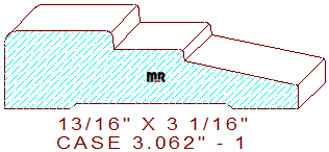

This stylish 3-1/16" - 1 door/window casing measures 3.062” wide by .812” thickness, authorizing the detail to be machined out of four quarter lumber. The lovely tiered profile is composed of a 1-1/8” wide by 3/16” tall raised fillet with a 1/8” rounded outer, and a 1/16” eased inner edge on the top left, connected to a 3/4” wide by 1/8” tall flat section with an additional 1/16” rolled edge in the center, joined to a 11.889 degree angled line with a 3/64” eased edge, leaving a 1/4” thickness dimension on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.062
Depth of Cut: 0.751
Bottom Cutter Head
Width: 3.062
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$248.85
$233.60
Total:
$482.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.10
$248.85
Total:
$512.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.34
$264.10
Total:
$543.44
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
