Door/Window Casing 3-1/16" - 2

Door/Window Casing 3-1/16" - 2

Door/Window Casing 3-1/16" - 2

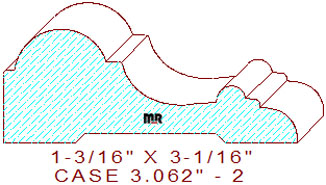

This embellishing 3-1/16" - 2 door casing measures 3.062" wide by 1.187" thickness, requiring the pattern be machined out of six-quarter lumber. The visually appealing profile is composed of a 1/16" wide fillet with a 3/64" eased edge at a 49/64" thickness dimension on the top left, connected to a 61/64" wide convex arc with an 11/64" broad flat line and a two tangent radius cove in the center, attached to a 5/16" half round bead and a slightly tapered horizontal line segment with a 1/16" rolled edge and a 5/16" quarter round arc on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.062
Depth of Cut: 1.187
Bottom Cutter Head
Width: 3.062
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.10
$233.60
Total:
$497.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.34
$248.85
Total:
$528.19
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$294.59
$264.10
Total:
$558.69
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
