Door/Window Casing 3-1/16" - 3
Door/Window Casing 3-1/16" - 3

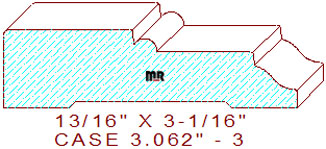

This elegant 3-1/16" - 3 door/window casing measures 3.062" wide by .812" thickness, necessitating the pattern be machined from four-quarter lumber. The striking profile is composed of a 1-23/64" wide by 5/32" tall raised fillet with a 1/16" rolled outer edge on the top left, connected to a decorative 15/64" convex bead and a one-inch broad line segment with a 9/64" vertical step in the center, merged with a two tangent radius ogee with a 3/64" eased edge leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.062
Depth of Cut: 0.812
Bottom Cutter Head
Width: 3.062
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$256.47
$241.22
Total:
$497.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.72
$256.47
Total:
$528.19
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$294.59
$279.34
Total:
$573.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
