Door/Window Casing 3-1/8" - 10
Door/Window Casing 3-1/8" - 10

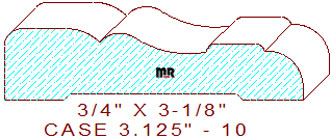

This graceful 3-1/8" - 10 door/window casing measures 3.125" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The embellishing profile is composed of a one-inch wide flat section with a 3/16" rolled outer, and a 1/2" rounded inside edge on the top left, connected to a 9/32" convex arc tangent to a 1-1/32" concave semicircle creating the s-shaped curvature in the center, attached to a 39/64" wide raised fillet with 3/32" eased edges and a 3/8" quarter round bead on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.125
Depth of Cut: 0.730
Bottom Cutter Head
Width: 3.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$260.00
$244.50
Total:
$504.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$260.00
Total:
$535.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.75
$283.25
Total:
$582.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
