Door/Window Casing 3-1/8" - 15

Door/Window Casing 3-1/8" - 15

Door/Window Casing 3-1/8" - 15

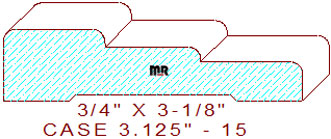

This southwest-style 3-1/8" - 15 door/window casing measures 3.125" wide by .750" thickness, enabling the pattern to be milled out of four-quarter lumber. The long-established profile is composed of a 1-1/16" wide by 3/16" tall raised fillet with a 1/8" rounded outer, and a 1/8" rolled edge on the top left, connected to a one-inch broad flat line with an extra 1/8" radius edge in the center, merged with another 1-1/16" wide line segment with a 1/8" eased edge, leaving a 13/32" thickness dimension on the right side of the design. We offer an alternative profile in the same width but with different inner sizes for your review and consideration, door/window casing 3.125" - 8.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.125
Depth of Cut: 0.623
Bottom Cutter Head
Width: 3.125
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$236.75
$236.75
Total:
$473.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$252.25
$252.25
Total:
$504.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.75
$267.75
Total:
$535.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
