Casing Moulding 3-1/8" - 2

Casing Moulding 3-1/8" - 2

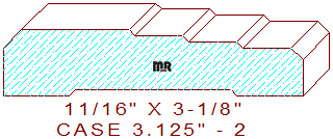

This stepped casing moulding 3-1/8" - 2 measures 3.125" wide by .687" thickness. The chamfered profile is comprised of of a 1-1/8" wide horizontal line flanked by a 3/16" wide bevel on the outer edge, attached to a 1/16" chamfer that transitions into three 9/16" wide by 1/16" deep steps, with a 1/8" bevel on the thin side of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. You may have to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this pattern.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.125" / Depth of Cut = .375" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
