Door/Window Casing 3-5/32" - 1
Door/Window Casing 3-5/32" - 1

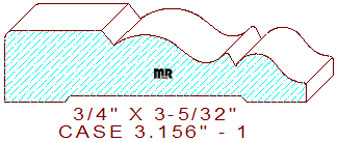

This beautiful 3-5/32" - 1 door/window casing measures 3.156" wide by .750" thickness, permitting the detail to be milled from four-quarter lumber. The elegant profile is composed of a 1-1/64" broad flat line segment with a 3/32" rolled outer edge on the top left, connected to an elevation changing inner beveled edge that joins to two tangent radii an s-shaped curvature with a steeper chamfered edge in the center, bound to a shorter cyma reversa with a 3/64" eased edge, leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.156
Depth of Cut: 0.713
Bottom Cutter Head
Width: 3.156
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$261.74
$246.11
Total:
$507.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$277.36
$261.74
Total:
$539.10
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$300.80
$285.17
Total:
$585.97
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
