Door/Window Casing 3-3/16" - 1
Door/Window Casing 3-3/16" - 1

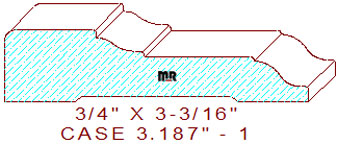

This distinguished 3-3/16" - 1 door/window casing measure 3.187" wide by .750" thickness, allowing the pattern to be machined out of four-quarter lumber. The cascading profile is composed of a 31/32" wide by 3/32" tall raised fillet with a 1/8" rounded outer edge on the top left, joined to a shallow two tangent radius ogee with a 1/16" round step merged with a 1-9/64" broad line segment in the center, connected to a 3/64" round-over that attaches to a broader and steeper ogee with another 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.718
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$247.72
Total:
$511.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.22
$263.47
Total:
$542.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.84
$287.09
Total:
$589.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
