Door/Window Casing 3-3/16" - 10
Door/Window Casing 3-3/16" - 10

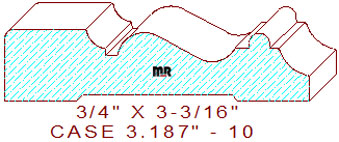

This colonial 3-3/16" - 10 door/window casing measures 3.187" width by .750" thickness, requiring a 3-7/16" wide blank of four-quarter lumber for milling on an industrial moulder. The astonishing profile comprises all the classic geometrical shapes of this door casing style, including a 55/64" flat line with a 3/32" rolled outer edge on the top left. The fillet connects to a 15/64" cove with a vertical step joined to a 1/8" sunk fillet merged with a lovely s-shaped curvature in the center. The remaining portion comprises a towering half-circular bead flanked by short fillets with a 25/64" cove, and a 3/64" eased edge on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.676
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$247.72
Total:
$511.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.22
$263.47
Total:
$542.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.84
$287.09
Total:
$589.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
