Casing Moulding 3-3/16" - 2

Casing Moulding 3-3/16" - 2

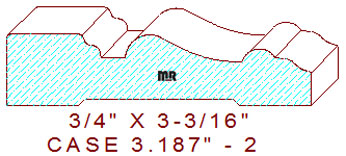

This colonial style casing moulding 3-3/16" - 2 measures 3.187" wide by .750" thickness. The old world design is comprised of a double eased edge fillet, attached to an elevation changing cyma recta that transitions into a 1/4" wide sunk fillet, connected to an elongated cyma reversa, joined to a half round circle and another smaller cyma reversa located on the thin side of the pattern.Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

The cad dxf file contains two high precision moulding template designs to create cutters for this gorgeous casing detail, one for the image you see above and the other for an 8" wide baseboard. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today. Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.187" / Depth of Cut = .590" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
