Door/Window Casing 3-3/16" - 3
Door/Window Casing 3-3/16" - 3

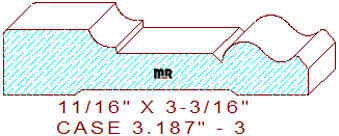

This designer 3-3/16" - 3 door/window casing measures 3.187" wide by .687" thickness, permitting the detail to be machined out of four-quarter lumber. The beautiful custom profile is composed of a 57/64" wide flat line with a 1/16" eased outer edge on the top left, attached to a 15/64" cove with a 5/64" vertical step, joined to a one-inch broad horizontal line segment in the center, connected to a forty-five-degree angled line merged with a slight wave-like s-shaped curvature with a 3/16" wide splay faced beveled line on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.481
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$247.72
$247.72
Total:
$495.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$263.47
Total:
$526.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$287.09
Total:
$574.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
