Door/Window Casing 3-3/16" - 4

Door/Window Casing 3-3/16" - 4

Door/Window Casing 3-3/16" - 4

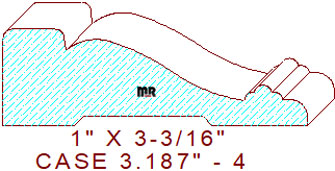

This beautifully bold 3-3/16" - 4 door/window casing measures 3.187" wide by 1.000" thickness, requiring the use of five-quarter lumber for milling on an industrial moulder. The deep downsloping profile is comprised of a 21/32" wide by 7/32" tall raised fillet with 3/32" rounded edges on the top left, attached to a graceful three tangent radius cyma reversa in the center, joined to three decorative clover-shaped beads with a 3/16" rounded edge on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 1.000
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$255.60
$239.85
Total:
$495.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.35
$255.60
Total:
$526.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$271.35
Total:
$558.44
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
