Door/Window Casing 3-3/16" - 9
Door/Window Casing 3-3/16" - 9

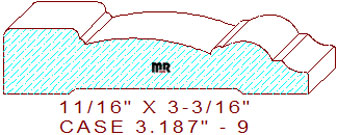

This delightful 3-3/16" - 9 door/window casing measures 3.187" wide by .687" thickness, permitting the detail to be cut out of four-quarter lumber. The beautiful profile composes a 25/32" wide raised fillet with a 5/64" eased outer and a 3/32" rounded inner edge on the top left. Connected to a tiny 1/16" quarter round bead that joins to a 2-1/16" radius semicircular arc in the center, attached to a 3/32" quarter circle and a 21/64" convex arc, bound to a 3/32" broad line segment with a 1/16" round-over and a 1/4" cove with a 3/64" eased edge on the right side of the design. We have numerous baseboard profiles that would complement this elegant pattern. Here is just one you may want to review and consider, baseboard 7.000" - 12.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$247.72
$247.72
Total:
$495.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$263.47
Total:
$526.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$287.09
Total:
$574.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
