Casing Moulding 3-7/32" - 7

Casing Moulding 3-7/32" - 7

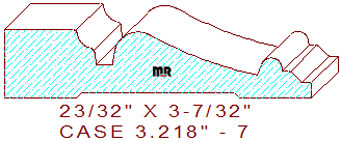

This compelling colonial casing moulding 3-7/32" - 7 measures 3.218" wide by .718" thickness. The lovely profile is composed of a 49/64" wide squared outside edge, connected to a 3/16" cove with a 5/32" vertical drop in elevation, joined to a 3/16" wide sunk fillet that transitions into a 1/4" radius arc tangent off of a 3-27/32" down sloping semicircle, merged with a small thumbnail shaped bead and two tiny line segments divided by a beveled line on the thin side of the pattern. You might want to ease the sharp left outside edge of this design with one of our many radius edges, here is one we think would work well with this pattern, radius .062". We also offer many baseboard designs that would match with this detail, here is just one that you may want to review and consider, base molding 4.250" - 23.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.218" / Depth of Cut = .556" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
