Casing Moulding 3-1/4"

Casing Moulding 3-1/4"

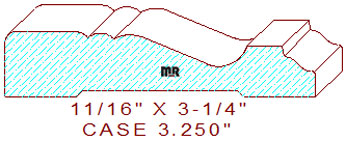

This distinctive casing moulding 3-1/4" measures 3.250" wide by .687" thickness. The graceful profile is comprised of a 7/8" wide horizontal line with a 1/8" eased edge on the outside and a 3/16" radius on the inside, connected to an elongated deep sloping cyma reversa in the center, joined to a 3/8" wide by 7/64" tall raised fillet with a small ogee on the thin side of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Read our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulding knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and many more. Try our services, you'll be pleased with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.250" / Depth of Cut = .594" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
