Door/Window Casing 3-1/4" - 117
Door/Window Casing 3-1/4" - 117

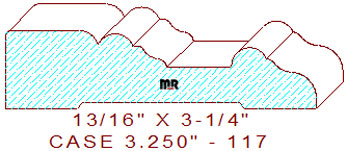

This fancy 3-1/4" - 117 door/window casing measures 3.250" wide by .812" thickness, allowing the detail to be milled from four-quarter lumber. This beautiful custom profile is composed of a 31/32" wide raised fillet with a 1/16" outer and a 13/64" inner edge on the left, joined to a 3/8" wide half circle that transitions into a three tangent radius wave-like arc, attached to a 43/64" wide sunk fillet that merges with another 3/8" wide half round bead and a three tangent radius cyma recta on the right side of the pattern. We offer hundreds of mopboard profiles that will match this pattern; here's one you may want to review and consider, baseboard 7.250" - 44.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.812
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$251.00
Total:
$518.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$283.00
$267.00
Total:
$550.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.00
$291.00
Total:
$598.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
