Door/Window Casing 3-1/4" - 121
Door/Window Casing 3-1/4" - 121

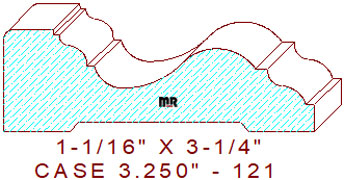

This fashionably elegant 3-1/4" - 121 door/window casing measures 3.250" wide by 1.062" thickness, requiring five-quarter lumber for milling on an industrial moulder. The gorgeous profile is composed of a 33/64" broad line segment with a 3/32" eased outer edge on the left, connected to a 1/16" wide by 1/16" deep notch that joins to small cyma recta with a 5/64" wide fillet, attached to a deep sloping two tangent radius scotia that's also tangent off of a 1/2" radius arc in the center, merged with another cyma recta flanked by a 1/8" line segment on top and a 3/32" wide fillet on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.781
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
