Door/Window Casing 3-1/4" - 135

Door/Window Casing 3-1/4" - 135

Door/Window Casing 3-1/4" - 135

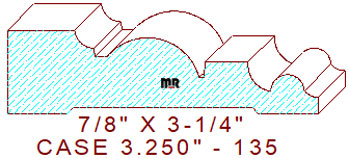

This intricate 3-1/4" - 135 door/window casing measures 3.250" wide by .875" thick. The detail will most likely be milled from five-quarter lumber. It might be possible to mill this detail using four-quarter boards if the metal feed rollers on the molder were strategically placed in a section of the design that would be milled away. The custom profile is composed of a 45/64" broad straight line joined to a 13/64" cove with a 3/32" vertical step on the left, connected to a 31/32" wide thumbnail-shaped arc flanked by sunk fillets at different elevations, attached to a 7/16" wide raised fillet merged to a 9/32" cove and a 23/64" wide half round bead with a 3/16" concave arc on the right side edge of the pattern. Try utilizing one of our many different fancy backband profiles on the outer edge of this pattern, create a stylish and unique door casing design for your beautiful home or office, alter the search parameters to find the width backband that best fits your architectural decor.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.702
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$259.00
$243.00
Total:
$502.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.00
$259.00
Total:
$534.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.00
$275.00
Total:
$566.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
