Casing Moulding 3-1/4" - 16

Casing Moulding 3-1/4" - 16

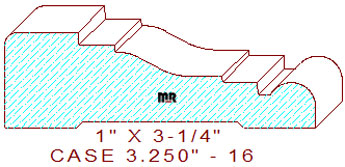

This distinctive casing moulding 3-1/4" - 16 measures 3.250 "wide by 1.000" thickness. The elegant profile is comprised of a 25/32" wide by 1/8" deep stepped line with a 1/8" radius on the outer edge, connected to a 3/8" wide by 5/64" deep step that transitions into a shallow two tangent radius ogee with a 1/16" step, joined to a 3/8" wide horizontal line with a 1/8" step that connects to a 1/8" wide sunk fillet with a 1/4" radius half round circle on the thin side of the design. You may want to browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Our high precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Kentwood, Shop Fox or Williams & Hussey moulder, our cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .875" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
