Casing Moulding 3-1/4" - 23

Casing Moulding 3-1/4" - 23

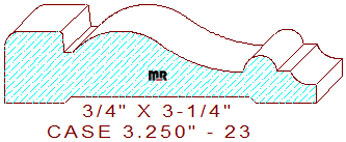

This custom casing moulding 3-1/4" - 23 measures 3.250" wide by .750" thickness. The distinctive profile is comprised of a 5/8" wide by 7/32" tall raised fillet with a 5/32" eased outer edge, connected to a 3/32" wide sunk fillet that transitions into a two tangent radius french curve, joined to a 11/32" wide half round circle and a 9/64" wide horizontal line with a 15/64" cove on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find one to suit your needs.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .718" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
