Door/Window Casing 3-1/4" - 36
Door/Window Casing 3-1/4" - 36

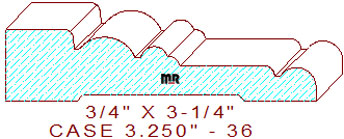

This fashionable door/window casing molding 3-1/4" - 36 measures 3.250" width by .750" thickness, enabling the use of a 3-1/2" blank of four quarter lumber for machining on a commercial moulder. The multi-beaded profile contains a 23/32" broad flat line with a 7/32"elevation drop on the top left. The outside corner is intentionally left sharp for the use of many of our radius edges. The short vertical line joins an 11/32" radius half-circle flanked by tiny sunk fillets attached to two cascading beads in the center. Joined to a one-inch flat line with a rolled inner edge, merged with another small sunk fillet with a 3/8" half circle on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$251.00
Total:
$518.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$283.00
$267.00
Total:
$550.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.00
$291.00
Total:
$598.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
