Casing Moulding 3-1/4" - 39

Casing Moulding 3-1/4" - 39

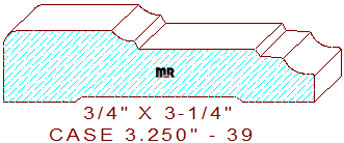

This beautiful casing moulding 3-1/4" - 39 measures 3.250" wide by .750" thickness. The colonial style profile is comprised of a 1-1/8" wide horizontal line with a 5/32" eased edge, connected to a 9/32" radius cove with a 3/32" deep beveled line, attached to a 1-7/32" wide straight line with a 5/64" deep angled step, joined to a 1/4" wide slightly beveled line with a 1/4" cove on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to choose from.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our profile catalog to your website? It's free, you don't even have to be a client of ours. You can't offer clients molding choices they don’t even know are available.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .646" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
