Casing Moulding 3-1/4" - 4

Casing Moulding 3-1/4" - 4

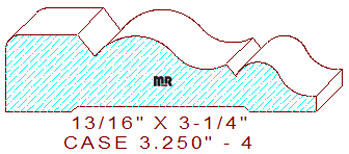

This captivating casing moulding 3-1/4" - 4 measures 3.250" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The attractive profile is comprised of a 3/4" wide horizontal line segment with an 5/32" eased outer edge on the left, connected a beveled line that transitions into a two tangent radius cyma reversa, joined to another less defined beveled line with a additional smaller cyma reversa on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

This attractive casing profile is available in a few different widths for your review and consideration, casing 3.500" - 147, casing 2.250" - 17 and casing 5.000" - 13. We also have a few assorted baseboard mouldings that would complement this pattern beautifully for your review and consideration, base 8.000" - 74, base 8.000" - 48, base 5.500" - 8 and base 3.250" - 4.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .643" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
