Casing Moulding 3-1/4" - 46

Casing Moulding 3-1/4" - 46

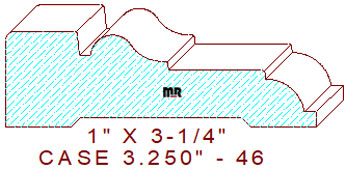

This custom casing moulding 3-1/4" - 46 measures 3.250" wide by 1.000" thickness, requiring five quarter lumber to mill this pattern on a industrial molder. The elegant profile is comprised of a 3/4" wide by 1/4" tall raised fillet with a 3/32" eased outer edge, attached to a 1/8" wide sunk fillet that transitions into a short two tangent radius cyma reversa with a 3/32" vertical step, connected to a 1-1/64" wide line with a 3/32" vertical drop merged with a 13/32" ovolo leaving a 5/32" thickness dimension on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .844" (top knives) & .093" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
