Casing Moulding 3-1/4" - 57

Casing Moulding 3-1/4" - 57

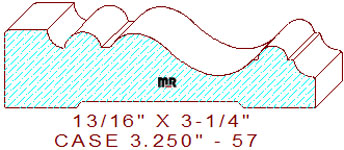

This beaded casing moulding 3-1/4" - 57 measures 3.250" wide by .812" thickness, enabling the detail to be milled from four quarter lumber. The embellished profile is composed of a 29/64" wide line segment with a 1/16" rounded outside edge on the left side, connected to a 13/64" cove that joins to a 25/64" wide half round bead and a 3/32" wide sunk fillet, attached to a three tangent radius cyma reversa that merges with a 5/16" wide half round circle flanked by 1/16" wide lines segments, and a 13/64" cove with a 3/64" eased edge on the right side of the pattern. We have another similar profile with altered inside dimensions for your review and consideration, casing 3.250" - 53. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .658" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
