Door/Window Casing 3-1/4" - 64
Door/Window Casing 3-1/4" - 64

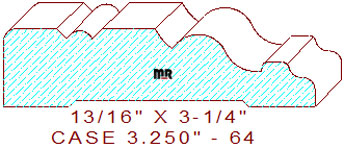

This beautiful 3-1/4" - 64 door/window casing measures 3.250" width by .812" thickness, permitting the use of four-quarter lumber for milling on an industrial moulder. The decorative profile contains a 1-19/32" wide flat line segment and a recessed half-bead flanked by beveled lines with a 1/8" rolled outer edge on the top left. The remaining section consists of a 9/16" cove that joins a downsloping s-shaped curvature to a small raised fillet with a two tangent radius ogee on the right edge of the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.773
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$251.00
Total:
$518.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$283.00
$267.00
Total:
$550.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.00
$291.00
Total:
$598.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
