Door/Window Casing 3-1/4" - 78

Door/Window Casing 3-1/4" - 78

Door/Window Casing 3-1/4" - 78

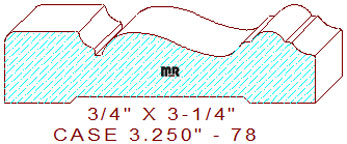

This colonial 3-1/4" - 78 door/window casing measures 3.250" wide by .750" thickness. This widely used lovely profile is comprised of a 25/32" broad horizontal line with a 1/8" eased edge, connected to a 3/16" cove with a 5/64" wide sunk fillet, joined to a four tangent radius cyma reversa with a 25/64" wide half circle flanked by small horizontal lines and a 1/4" cove on the thin side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.443
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$243.00
$243.00
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$259.00
$259.00
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.00
$275.00
Total:
$550.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
