Casing Moulding 3-5/16" - 2

Casing Moulding 3-5/16" - 2

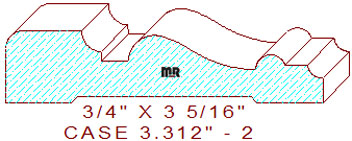

This Casing Moulding 3-5/16" - 2 measures 3.312" wide by .750" thickness, with a .687" depth of cut on the top horizontal set of cutters.

Please search our backout category for a suitable relief cut for this detail, we have many available options to choose from. You may have to change the backout search parameters by an 1/8" or so to find a suitable size profile.

The profile is comprised of a 3/16" radius edge fillet, attached to a 7/32" radius cavetto with a 9/32" wide sunk fillet, which transitions into a cyma reversa, half round circle, horizontal fillet, and a 5/32" radius cove on the thin side of the pattern.

Ever wonder who produces and provides the finest quality custom moulding knives and customer service in the millwork industry? Please offer us an opportunity to demonstrate our abilities, you will be pleasantly surprised with our services.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
