Unique Casing Moulding 3-5/16" - 7

Unique Casing Moulding 3-5/16" - 7

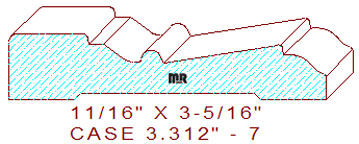

This Unique Casing Moulding 3-5/16" - 7 measures 3.312" wide by .687" thickness with a .616" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this pattern.

The stylish profile is comprised of a double eased edge stepped fillet, connected to a horizontal line that transitions downward to an elliptical shaped half round circle, joined to an upsloping beveled line, connected to a vertical fillet with a small cyma reversa/ogee located on the thin side of the pattern.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful moulding pattern. Choose any of our quality moulding knife steels or carbide, we generally can ship the same day.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
