Door/Window Casing 3-3/8" - 12
Door/Window Casing 3-3/8" - 12

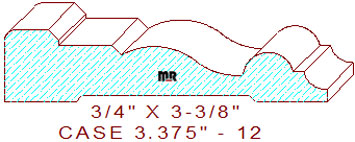

This beautiful 3-3/8" - 12 door/window casing measures 3.375" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The beautifully unique profile is composed of a 9/16" wide by 11/64" tall raised fillet with a beveled inside edge and a 1/8" eased outer edge on the left, connected to a 35/64" broad line segment with a forty-five degree angled line that merges with a two tangent radius cyma reversa in the center, joined to a 17/32" wide half round bead with a 7/64" broad line and a 7/32" cove on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.622
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$257.50
$257.50
Total:
$515.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$274.00
$274.00
Total:
$548.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.75
$298.75
Total:
$597.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
