Door/Window Casing 3-3/8" - 14
Door/Window Casing 3-3/8" - 14

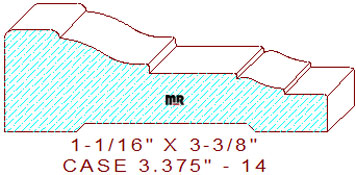

This bold 3-3/8" - 14 door/window casing measures 3.375" wide by 1.062" thickness, allowing the detail to be machined from five-quarter lumber. The custom profile is composed of a 37/64" wide raised fillets with two 3/32" rounded edges on the left, connected to a shallow cyma reversa with a 3/32" vertical step that merges with a 59/64" wide line segment in the center, attached to another smaller ogee and a 1/16" vertical step with a 29/64" wide line and a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.839
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$274.00
$257.50
Total:
$531.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.50
$274.00
Total:
$564.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$315.25
$298.75
Total:
$614.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
